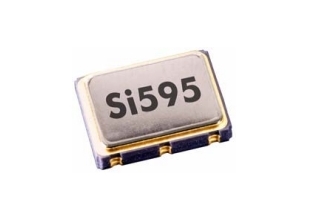

- 產品型號：61451806
- 晶振頻率：77.76MHz
- 晶振尺寸：7.0*5.0*1.5mm
- 產品應用： 思佳訊差分晶振,Si595壓控晶振,VCXO晶振,高頻率穩定性晶振,高可靠性晶振,595AC77M7600DGR晶振,石英晶體振蕩器,7050mm晶振,有源晶振,進口貼片晶振,LVPECL晶振,6G無線網絡晶振,以太網晶振,FPGA/ASIC時鐘生成晶振.
-
思佳訊差分晶振,595AC77M7600DGR,6G無線網絡晶振
思佳訊差分晶振,595AC77M7600DGR,6G無線網絡晶振,思佳訊差分晶振,Si595壓控晶振,VCXO晶振,采用Skyworks Solutions先進的DSPLL®電路,在高頻下提供低抖動時鐘,可提供從10到810 MHz的任意速率輸出頻率,不同于傳統的VCXO,每個輸出頻率需要不同的晶體,Si595使用一個固定晶體來提供寬范圍的輸出頻率,這種基于集成電路的方法允許晶體諧振器提供卓越的頻率穩定性和可靠性,石英晶體振蕩器,7050mm晶振,有源晶振,進口貼片晶振,LV-PECL晶振,6G無線網絡晶振,以太網晶振,FPGA/ASIC時鐘生成晶振.

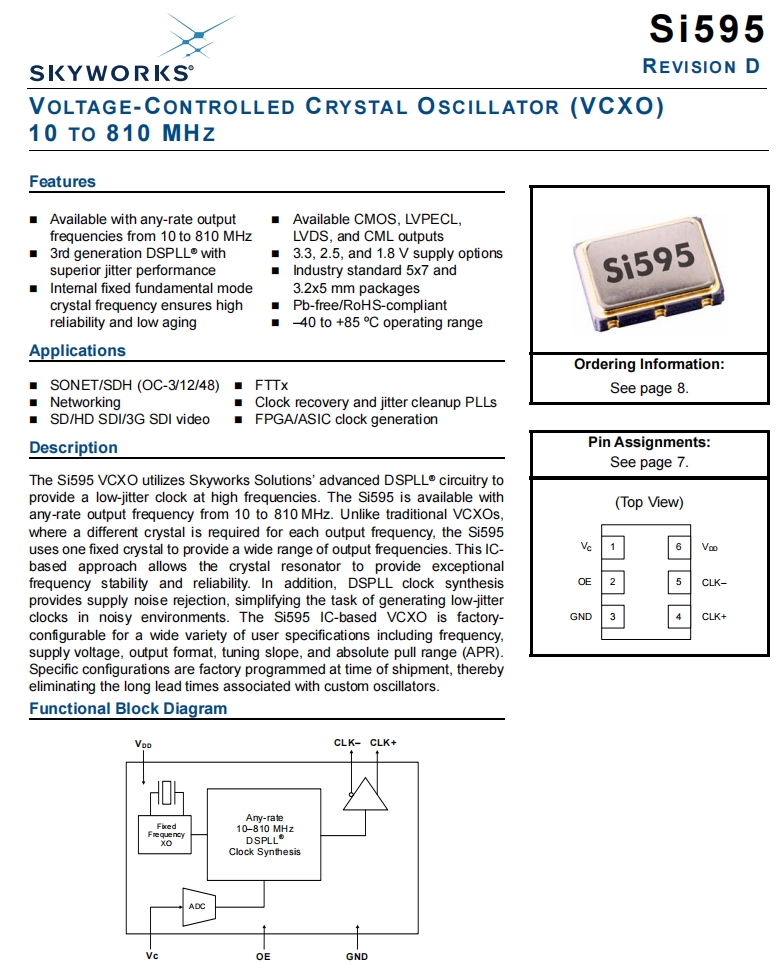

思佳訊差分晶振,595AC77M7600DGR,6G無線網絡晶振特點：
•可與任意速率輸出頻率從10MHz到810MHz
•第三代DSPLL®具有卓越的抖動性能
•頻率穩定性優于SAW-based振蕩器
•內部固定基模晶體頻率保證高可靠性和低老化
•可用CMOS, LVPECL，LVDS和CML輸出
•3.3, 2.5 V和1.8V電源選項
•工業標準的5 × 7mm和3.2×2.5mm封裝
•無鉛，符合RoHS標準
•工作溫度范圍-40至+85ºC
思佳訊差分晶振,595AC77M7600DGR,6G無線網絡晶振規格表
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 77.76MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 3.3V | |
| 儲存溫度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作溫度 | T_use | -40℃~ +85℃ | |
| 頻率穩定性 | f_tol | ±50 ppm | +25℃,超出標準的規格說明請聯系我們 |
| 電源電流 | IDD | 135mA Max |
LVPECL
|
| 對稱性（占空比） | SYM | 45%~55% | 在輸出交叉點 |
| 輸出電壓 | VOD | 1.9VPP Max |
LVPECL
|
| VO | 1.25V Max | ||
| 輸入電壓 | VIH | 0.75×VDD Min |
|
| VIL | 0.5V Max | ||
| 上升下降時間 | tr/tf | 350ps Max |
LVPECL
|
| 起始時間 | t str | 10ms Max | |
| 相位抖動 | tpj | 0.5ps Max |
Differential Formats
|
.jpg)

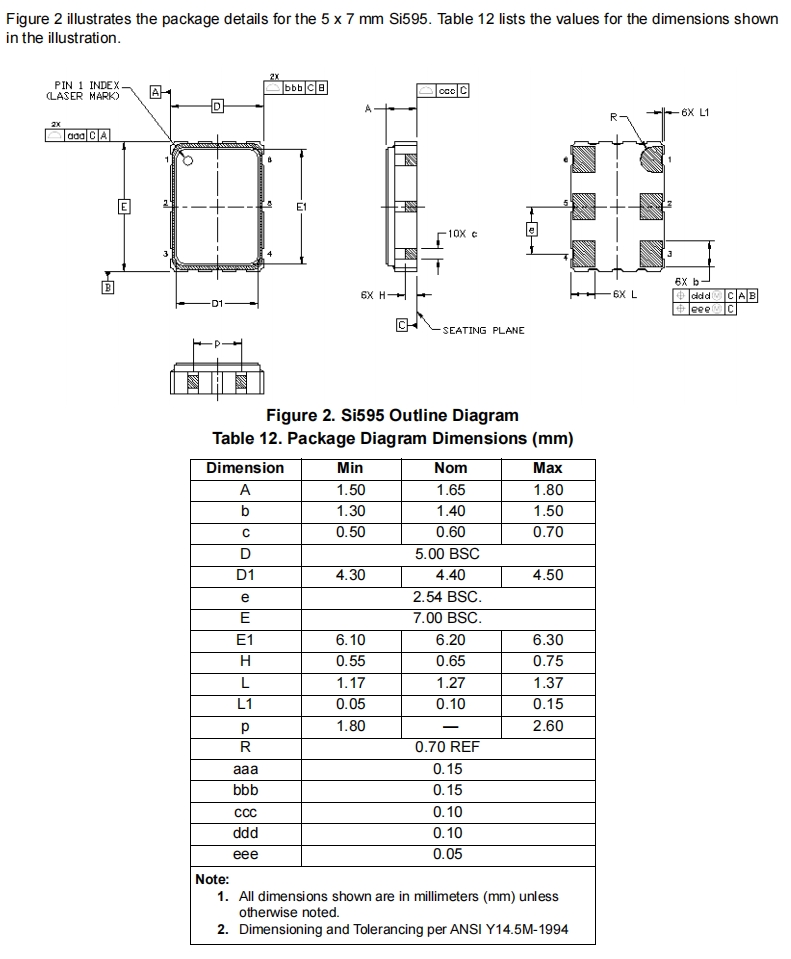

思佳訊差分晶振,595AC77M7600DGR,6G無線網絡晶振尺寸圖
| 原廠編碼 | 品牌 | 型號 | 頻率 | 輸出 | 電壓 | 頻率穩定性 |
| 595AC10M0000DGR | Skyworks Solutions Inc. | Si595 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC16M3840DGR | Skyworks Solutions Inc. | Si595 | 16.384 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC32M7680DGR | Skyworks Solutions Inc. | Si595 | 32.768 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC77M7600DGR | Skyworks Solutions Inc. | Si595 | 77.76 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC93M3120DGR | Skyworks Solutions Inc. | Si595 | 93.312 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF32M0000DGR | Skyworks Solutions Inc. | Si595 | 32 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF54M0000DGR | Skyworks Solutions Inc. | Si595 | 54 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG100M000DGR | Skyworks Solutions Inc. | Si595 | 100 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG10M0000DGR | Skyworks Solutions Inc. | Si595 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG125M000DGR | Skyworks Solutions Inc. | Si595 | 125 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG24M5760DGR | Skyworks Solutions Inc. | Si595 | 24.576 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG74M2500DGR | Skyworks Solutions Inc. | Si595 | 74.25 MHz | LVPECL | 3.3V | ±50ppm |
| 595BF27M0000DGR | Skyworks Solutions Inc. | Si595 | 27 MHz | LVDS | 3.3V | ±50ppm |
| 595MC125M000DGR | Skyworks Solutions Inc. | Si595 | 125 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF70M6560DGR | Skyworks Solutions Inc. | Si595 | 70.656 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF40M0000DGR | Skyworks Solutions Inc. | Si595 | 40 MHz | LVPECL | 3.3V | ±50ppm |
| 595FS100M000DGR | Skyworks Solutions Inc. | Si595 | 100 MHz | LVDS | 2.5V | ±50ppm |
| 595AD10M0000DGR | Skyworks Solutions Inc. | Si595 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD50M0000DGR | Skyworks Solutions Inc. | Si595 | 50 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD64M0000DGR | Skyworks Solutions Inc. | Si595 | 64 MHz | LVPECL | 3.3V | ±20ppm |
| 595AH122M880DGR | Skyworks Solutions Inc. | Si595 | 122.88 MHz | LVPECL | 3.3V | ±20ppm |
| 595AH61M4400DGR | Skyworks Solutions Inc. | Si595 | 61.44 MHz | LVPECL | 3.3V | ±20ppm |
| 595BA25M0000DGR | Skyworks Solutions Inc. | Si595 | 25 MHz | LVDS | 3.3V | ±20ppm |
| 595BD125M000DGR | Skyworks Solutions Inc. | Si595 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 595BE70M6560DGR | Skyworks Solutions Inc. | Si595 | 70.656 MHz | LVDS | 3.3V | ±20ppm |
| 595BE74M2500DGR | Skyworks Solutions Inc. | Si595 | 74.25 MHz | LVDS | 3.3V | ±20ppm |
| 595ME77M7600DGR | Skyworks Solutions Inc. | Si595 | 77.76 MHz | LVPECL | 3.3V | ±20ppm |
| 595ME93M3120DGR | Skyworks Solutions Inc. | Si595 | 93.312 MHz | LVPECL | 3.3V | ±20ppm |
| 595MH100M000DGR | Skyworks Solutions Inc. | Si595 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 595ND70M6560DGR | Skyworks Solutions Inc. | Si595 | 70.656 MHz | LVDS | 3.3V | ±20ppm |
| 595AD40M0000DGR | Skyworks Solutions Inc. | Si595 | 40 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE40M0000DGR | Skyworks Solutions Inc. | Si595 | 40 MHz | LVPECL | 3.3V | ±20ppm |
| 595BE10M0000DGR | Skyworks Solutions Inc. | Si595 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 595FK25M0000DGR | Skyworks Solutions Inc. | Si595 | 25 MHz | LVDS | 2.5V | ±20ppm |
| 595AC10M0000DG | Skyworks Solutions Inc. | Si595 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC16M3840DG | Skyworks Solutions Inc. | Si595 | 16.384 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC32M7680DG | Skyworks Solutions Inc. | Si595 | 32.768 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC77M7600DG | Skyworks Solutions Inc. | Si595 | 77.76 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC93M3120DG | Skyworks Solutions Inc. | Si595 | 93.312 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF32M0000DG | Skyworks Solutions Inc. | Si595 | 32 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF54M0000DG | Skyworks Solutions Inc. | Si595 | 54 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG100M000DG | Skyworks Solutions Inc. | Si595 | 100 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG10M0000DG | Skyworks Solutions Inc. | Si595 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG125M000DG | Skyworks Solutions Inc. | Si595 | 125 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG24M5760DG | Skyworks Solutions Inc. | Si595 | 24.576 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG74M2500DG | Skyworks Solutions Inc. | Si595 | 74.25 MHz | LVPECL | 3.3V | ±50ppm |
| 595BF27M0000DG | Skyworks Solutions Inc. | Si595 | 27 MHz | LVDS | 3.3V | ±50ppm |
| 595MC125M000DG | Skyworks Solutions Inc. | Si595 | 125 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF70M6560DG | Skyworks Solutions Inc. | Si595 | 70.656 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF40M0000DG | Skyworks Solutions Inc. | Si595 | 40 MHz | LVPECL | 3.3V | ±50ppm |
| 595FS100M000DG | Skyworks Solutions Inc. | Si595 | 100 MHz | LVDS | 2.5V | ±50ppm |
| 595BC000178DGR | Skyworks Solutions Inc. | Si595 | 148.3516 MHz | LVDS | 3.3V | ±50ppm |
| 595FG148M500DGR | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVDS | 2.5V | ±50ppm |
| 595FS000244DGR | Skyworks Solutions Inc. | Si595 | 148.351648 MHz | LVDS | 2.5V | ±50ppm |
| 595AC196M608DGR | Skyworks Solutions Inc. | Si595 | 196.608 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF000244DGR | Skyworks Solutions Inc. | Si595 | 244 kHz | LVPECL | 3.3V | ±50ppm |
| 595AF000343DGR | Skyworks Solutions Inc. | Si595 | 343 kHz | LVPECL | 3.3V | ±50ppm |
| 595AF140M000DGR | Skyworks Solutions Inc. | Si595 | 140 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF148M500DGR | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF155M520DGR | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF208M000DGR | Skyworks Solutions Inc. | Si595 | 208 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG000172DGR | Skyworks Solutions Inc. | Si595 | 172 kHz | LVPECL | 3.3V | ±50ppm |
| 595AG000244DGR | Skyworks Solutions Inc. | Si595 | 244 kHz | LVPECL | 3.3V | ±50ppm |
| 595AG148M500DGR | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG155M520DGR | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| 595BC148M500DGR | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 595BG148M352DGR | Skyworks Solutions Inc. | Si595 | 148.352 MHz | LVDS | 3.3V | ±50ppm |
| 595BG148M500DGR | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 595EG160M000DGR | Skyworks Solutions Inc. | Si595 | 160 MHz | LVPECL | 2.5V | ±50ppm |
| 595MG139M264DGR | Skyworks Solutions Inc. | Si595 | 139.264 MHz | LVPECL | 3.3V | ±50ppm |
| 595MG155M520DGR | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| 595AD10M0000DG | Skyworks Solutions Inc. | Si595 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD50M0000DG | Skyworks Solutions Inc. | Si595 | 50 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD64M0000DG | Skyworks Solutions Inc. | Si595 | 64 MHz | LVPECL | 3.3V | ±20ppm |
| 595AH122M880DG | Skyworks Solutions Inc. | Si595 | 122.88 MHz | LVPECL | 3.3V | ±20ppm |
| 595AH61M4400DG | Skyworks Solutions Inc. | Si595 | 61.44 MHz | LVPECL | 3.3V | ±20ppm |
| 595BA25M0000DG | Skyworks Solutions Inc. | Si595 | 25 MHz | LVDS | 3.3V | ±20ppm |
| 595BD125M000DG | Skyworks Solutions Inc. | Si595 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 595BE70M6560DG | Skyworks Solutions Inc. | Si595 | 70.656 MHz | LVDS | 3.3V | ±20ppm |
| 595BE74M2500DG | Skyworks Solutions Inc. | Si595 | 74.25 MHz | LVDS | 3.3V | ±20ppm |
| 595ME77M7600DG | Skyworks Solutions Inc. | Si595 | 77.76 MHz | LVPECL | 3.3V | ±20ppm |
| 595ME93M3120DG | Skyworks Solutions Inc. | Si595 | 93.312 MHz | LVPECL | 3.3V | ±20ppm |
| 595MH100M000DG | Skyworks Solutions Inc. | Si595 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 595ND70M6560DG | Skyworks Solutions Inc. | Si595 | 70.656 MHz | LVDS | 3.3V | ±20ppm |
| 595BE10M0000DG | Skyworks Solutions Inc. | Si595 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 595AE40M0000DG | Skyworks Solutions Inc. | Si595 | 40 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD40M0000DG | Skyworks Solutions Inc. | Si595 | 40 MHz | LVPECL | 3.3V | ±20ppm |
| 595FK25M0000DG | Skyworks Solutions Inc. | Si595 | 25 MHz | LVDS | 2.5V | ±20ppm |
| 595AC196M608DG | Skyworks Solutions Inc. | Si595 | 196.608 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF000244DG | Skyworks Solutions Inc. | Si595 | 244 kHz | LVPECL | 3.3V | ±50ppm |
| 595AF000343DG | Skyworks Solutions Inc. | Si595 | 343 kHz | LVPECL | 3.3V | ±50ppm |
| 595AF140M000DG | Skyworks Solutions Inc. | Si595 | 140 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF148M500DG | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF155M520DG | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF208M000DG | Skyworks Solutions Inc. | Si595 | 208 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG000172DG | Skyworks Solutions Inc. | Si595 | 172 kHz | LVPECL | 3.3V | ±50ppm |
| 595AG000244DG | Skyworks Solutions Inc. | Si595 | 244 kHz | LVPECL | 3.3V | ±50ppm |
| 595AG148M500DG | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG155M520DG | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| 595BC148M500DG | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 595BG148M352DG | Skyworks Solutions Inc. | Si595 | 148.352 MHz | LVDS | 3.3V | ±50ppm |
| 595BG148M500DG | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 595EG160M000DG | Skyworks Solutions Inc. | Si595 | 160 MHz | LVPECL | 2.5V | ±50ppm |
| 595MG139M264DG | Skyworks Solutions Inc. | Si595 | 139.264 MHz | LVPECL | 3.3V | ±50ppm |
| 595MG155M520DG | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| 595BC000178DG | Skyworks Solutions Inc. | Si595 | 148.3516 MHz | LVDS | 3.3V | ±50ppm |
| 595FG148M500DG | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVDS | 2.5V | ±50ppm |
| 595FS000244DG | Skyworks Solutions Inc. | Si595 | 148.351648 MHz | LVDS | 2.5V | ±50ppm |
| 595BA125M000DG | Skyworks Solutions Inc. | Si595 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 595BA125M000DGR | Skyworks Solutions Inc. | Si595 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 595BG491M520DGR | Skyworks Solutions Inc. | Si595 | 491.52 MHz | LVDS | 3.3V | ±50ppm |
| 595BG500M000DGR | Skyworks Solutions Inc. | Si595 | 500 MHz | LVDS | 3.3V | ±50ppm |
| 595NG250M000DGR | Skyworks Solutions Inc. | Si595 | 250 MHz | LVDS | 3.3V | ±50ppm |
| 595AA155M520DGR | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 595AB148M500DGR | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVPECL | 3.3V | ±20ppm |
| 595AB155M520DGR | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD153M600DGR | Skyworks Solutions Inc. | Si595 | 153.6 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD170M240DGR | Skyworks Solutions Inc. | Si595 | 170.24 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD205M000DGR | Skyworks Solutions Inc. | Si595 | 205 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD210M000DGR | Skyworks Solutions Inc. | Si595 | 210 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE155M520DGR | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE156M250DGR | Skyworks Solutions Inc. | Si595 | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE192M000DGR | Skyworks Solutions Inc. | Si595 | 192 MHz | LVPECL | 3.3V | ±20ppm |
| 595BA148M425DGR | Skyworks Solutions Inc. | Si595 | 148.425 MHz | LVDS | 3.3V | ±20ppm |
| 595BD209M345DGR | Skyworks Solutions Inc. | Si595 | 209.345 MHz | LVDS | 3.3V | ±20ppm |
| 595EB155M520DGR | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 2.5V | ±20ppm |
| 595FB212M000DGR | Skyworks Solutions Inc. | Si595 | 212 MHz | LVDS | 2.5V | ±20ppm |
| 595MD161M525DGR | Skyworks Solutions Inc. | Si595 | 161.525 MHz | LVPECL | 3.3V | ±20ppm |
| 595MD161M575DGR | Skyworks Solutions Inc. | Si595 | 161.575 MHz | LVPECL | 3.3V | ±20ppm |
| 595ME155M520DGR | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD147M900DGR | Skyworks Solutions Inc. | Si595 | 147.9 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE160M000DGR | Skyworks Solutions Inc. | Si595 | 160 MHz | LVPECL | 3.3V | ±20ppm |
| 595BB000178DGR | Skyworks Solutions Inc. | Si595 | 148.3516 MHz | LVDS | 3.3V | ±20ppm |
| 595BB148M500DGR | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 595AA155M520DG | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 595AB148M500DG | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVPECL | 3.3V | ±20ppm |
| 595AB155M520DG | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD153M600DG | Skyworks Solutions Inc. | Si595 | 153.6 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD170M240DG | Skyworks Solutions Inc. | Si595 | 170.24 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD205M000DG | Skyworks Solutions Inc. | Si595 | 205 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD210M000DG | Skyworks Solutions Inc. | Si595 | 210 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE155M520DG | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE156M250DG | Skyworks Solutions Inc. | Si595 | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE192M000DG | Skyworks Solutions Inc. | Si595 | 192 MHz | LVPECL | 3.3V | ±20ppm |
| 595BA148M425DG | Skyworks Solutions Inc. | Si595 | 148.425 MHz | LVDS | 3.3V | ±20ppm |
| 595BD209M345DG | Skyworks Solutions Inc. | Si595 | 209.345 MHz | LVDS | 3.3V | ±20ppm |
| 595EB155M520DG | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 2.5V | ±20ppm |
| 595FB212M000DG | Skyworks Solutions Inc. | Si595 | 212 MHz | LVDS | 2.5V | ±20ppm |
| 595MD161M525DG | Skyworks Solutions Inc. | Si595 | 161.525 MHz | LVPECL | 3.3V | ±20ppm |
| 595MD161M575DG | Skyworks Solutions Inc. | Si595 | 161.575 MHz | LVPECL | 3.3V | ±20ppm |
| 595ME155M520DG | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD147M900DG | Skyworks Solutions Inc. | Si595 | 147.9 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE160M000DG | Skyworks Solutions Inc. | Si595 | 160 MHz | LVPECL | 3.3V | ±20ppm |
| 595BB000178DG | Skyworks Solutions Inc. | Si595 | 148.3516 MHz | LVDS | 3.3V | ±20ppm |
| 595BB148M500DG | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 595BG491M520DG | Skyworks Solutions Inc. | Si595 | 491.52 MHz | LVDS | 3.3V | ±50ppm |
| 595BG500M000DG | Skyworks Solutions Inc. | Si595 | 500 MHz | LVDS | 3.3V | ±50ppm |
| 595NG250M000DG | Skyworks Solutions Inc. | Si595 | 250 MHz | LVDS | 3.3V | ±50ppm |
| 595AB800M000DGR | Skyworks Solutions Inc. | Si595 | 800 MHz | LVPECL | 3.3V | ±20ppm |
| 595AB800M000DG | Skyworks Solutions Inc. | Si595 | 800 MHz | LVPECL | 3.3V | ±20ppm |
| 595EE297M000DGR | Skyworks Solutions Inc. | Si595 | 297 MHz | LVPECL | 2.5V | ±20ppm |
| 595MD400M000DGR | Skyworks Solutions Inc. | Si595 | 400 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD400M000DGR | Skyworks Solutions Inc. | Si595 | 400 MHz | LVPECL | 3.3V | ±20ppm |
| 595BQ300M000DGR | Skyworks Solutions Inc. | Si595 | 300 MHz | LVDS | 3.3V | ±20ppm |
| 595MG700M000DGR | Skyworks Solutions Inc. | Si595 | 700 MHz | LVPECL | 3.3V | ±50ppm |
| 595AD225M000DGR | Skyworks Solutions Inc. | Si595 | 225 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD250M000DGR | Skyworks Solutions Inc. | Si595 | 250 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD256M000DGR | Skyworks Solutions Inc. | Si595 | 256 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD280M000DGR | Skyworks Solutions Inc. | Si595 | 280 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD480M000DGR | Skyworks Solutions Inc. | Si595 | 480 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE384M000DGR | Skyworks Solutions Inc. | Si595 | 384 MHz | LVPECL | 3.3V | ±20ppm |
| 595BB270M000DGR | Skyworks Solutions Inc. | Si595 | 270 MHz | LVDS | 3.3V | ±20ppm |
| 595MD224M000DGR | Skyworks Solutions Inc. | Si595 | 224 MHz | LVPECL | 3.3V | ±20ppm |
| 595MD432M975DGR | Skyworks Solutions Inc. | Si595 | 432.975 MHz | LVPECL | 3.3V | ±20ppm |
| 595SA500M000DGR | Skyworks Solutions Inc. | Si595 | 500 MHz | LVDS | 2.5V | ±20ppm |
| 595SB500M000DGR | Skyworks Solutions Inc. | Si595 | 500 MHz | LVDS | 2.5V | ±20ppm |
| 595EE297M000DG | Skyworks Solutions Inc. | Si595 | 297 MHz | LVPECL | 2.5V | ±20ppm |
| 595MD400M000DG | Skyworks Solutions Inc. | Si595 | 400 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD400M000DG | Skyworks Solutions Inc. | Si595 | 400 MHz | LVPECL | 3.3V | ±20ppm |
| 595BQ300M000DG | Skyworks Solutions Inc. | Si595 | 300 MHz | LVDS | 3.3V | ±20ppm |
| 595MG700M000DG | Skyworks Solutions Inc. | Si595 | 700 MHz | LVPECL | 3.3V | ±50ppm |
| 595AD225M000DG | Skyworks Solutions Inc. | Si595 | 225 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD250M000DG | Skyworks Solutions Inc. | Si595 | 250 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD256M000DG | Skyworks Solutions Inc. | Si595 | 256 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD280M000DG | Skyworks Solutions Inc. | Si595 | 280 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD480M000DG | Skyworks Solutions Inc. | Si595 | 480 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE384M000DG | Skyworks Solutions Inc. | Si595 | 384 MHz | LVPECL | 3.3V | ±20ppm |
| 595BB270M000DG | Skyworks Solutions Inc. | Si595 | 270 MHz | LVDS | 3.3V | ±20ppm |
| 595MD224M000DG | Skyworks Solutions Inc. | Si595 | 224 MHz | LVPECL | 3.3V | ±20ppm |
| 595MD432M975DG | Skyworks Solutions Inc. | Si595 | 432.975 MHz | LVPECL | 3.3V | ±20ppm |
| 595SA500M000DG | Skyworks Solutions Inc. | Si595 | 500 MHz | LVDS | 2.5V | ±20ppm |
| 595SB500M000DG | Skyworks Solutions Inc. | Si595 | 500 MHz | LVDS | 2.5V | ±20ppm |
| 595NG310M000DGR | Skyworks Solutions Inc. | Si595 | 310 MHz | LVDS | 3.3V | ±50ppm |
| 595AG404M000DGR | Skyworks Solutions Inc. | Si595 | 404 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC270M000DGR | Skyworks Solutions Inc. | Si595 | 270 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF248M832DGR | Skyworks Solutions Inc. | Si595 | 248.832 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF375M000DGR | Skyworks Solutions Inc. | Si595 | 375 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG491M520DGR | Skyworks Solutions Inc. | Si595 | 491.52 MHz | LVPECL | 3.3V | ±50ppm |
| 595BC216M000DGR | Skyworks Solutions Inc. | Si595 | 216 MHz | LVDS | 3.3V | ±50ppm |
| 595BC270M000DGR | Skyworks Solutions Inc. | Si595 | 270 MHz | LVDS | 3.3V | ±50ppm |
| 595BC500M000DGR | Skyworks Solutions Inc. | Si595 | 500 MHz | LVDS | 3.3V | ±50ppm |
| 595BF300M000DGR | Skyworks Solutions Inc. | Si595 | 300 MHz | LVDS | 3.3V | ±50ppm |
| 595FC270M000DGR | Skyworks Solutions Inc. | Si595 | 270 MHz | LVDS | 2.5V | ±50ppm |
| 595MC425M000DGR | Skyworks Solutions Inc. | Si595 | 425 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC270M000DG | Skyworks Solutions Inc. | Si595 | 270 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF248M832DG | Skyworks Solutions Inc. | Si595 | 248.832 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF375M000DG | Skyworks Solutions Inc. | Si595 | 375 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG491M520DG | Skyworks Solutions Inc. | Si595 | 491.52 MHz | LVPECL | 3.3V | ±50ppm |
| 595BC216M000DG | Skyworks Solutions Inc. | Si595 | 216 MHz | LVDS | 3.3V | ±50ppm |
| 595BC270M000DG | Skyworks Solutions Inc. | Si595 | 270 MHz | LVDS | 3.3V | ±50ppm |
| 595BC500M000DG | Skyworks Solutions Inc. | Si595 | 500 MHz | LVDS | 3.3V | ±50ppm |
| 595BF300M000DG | Skyworks Solutions Inc. | Si595 | 300 MHz | LVDS | 3.3V | ±50ppm |
| 595FC270M000DG | Skyworks Solutions Inc. | Si595 | 270 MHz | LVDS | 2.5V | ±50ppm |
| 595MC425M000DG | Skyworks Solutions Inc. | Si595 | 425 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG404M000DG | Skyworks Solutions Inc. | Si595 | 404 MHz | LVPECL | 3.3V | ±50ppm |
| 595NG310M000DG | Skyworks Solutions Inc. | Si595 | 310 MHz | LVDS | 3.3V | ±50ppm |
| 595AE000302DGR | Skyworks Solutions Inc. | Si595 | 302 kHz | LVPECL | 3.3V | ±20ppm |
| 595AE640M000DGR | Skyworks Solutions Inc. | Si595 | 640 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD004664DGR | Skyworks Solutions Inc. | Si595 | 805.664062 MHz | LVPECL | 3.3V | ±20ppm |
| 595AG622M080DGR | Skyworks Solutions Inc. | Si595 | 622.08 MHz | LVPECL | 3.3V | ±50ppm |
| 595MG622M080DGR | Skyworks Solutions Inc. | Si595 | 622.08 MHz | LVPECL | 3.3V | ±50ppm |
| 595BS622M080DGR | Skyworks Solutions Inc. | Si595 | 622.08 MHz | LVDS | 3.3V | ±50ppm |
| 595AS622M080DGR | Skyworks Solutions Inc. | Si595 | 622.08 MHz | LVPECL | 3.3V | ±50ppm |
| 595AE000302DG | Skyworks Solutions Inc. | Si595 | 302 kHz | LVPECL | 3.3V | ±20ppm |
| 595AE640M000DG | Skyworks Solutions Inc. | Si595 | 640 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD004664DG | Skyworks Solutions Inc. | Si595 | 805.664062 MHz | LVPECL | 3.3V | ±20ppm |
| 595AG622M080DG | Skyworks Solutions Inc. | Si595 | 622.08 MHz | LVPECL | 3.3V | ±50ppm |
| 595MG622M080DG | Skyworks Solutions Inc. | Si595 | 622.08 MHz | LVPECL | 3.3V | ±50ppm |
| 595BS622M080DG | Skyworks Solutions Inc. | Si595 | 622.08 MHz | LVDS | 3.3V | ±50ppm |
| 595AS622M080DG | Skyworks Solutions Inc. | Si595 | 622.08 MHz | LVPECL | 3.3V | ±50ppm |
1.技術支持 2.客服咨詢
全方位技術指導,專業的技術支持讓您感受 專業的銷售團隊,耐心為您解答任
到前所未有的后顧無憂. 何疑問.讓您的消費得到保障。
3.質量保證，誠信為上 4.提升業績,降低成本
我司以"科技為動力,以質量求生存."為理念. 為您的產品量身訂制,免費取樣,
為您做到低成本,高效率.
工作時間
1，我公司早上上班時間為8：30——12：00。下午上班時間為1：30——5：30。歡迎隨時咨詢我們，業務員手機都是24小時開機的哦！
2，珠三角地區的客戶統一發信豐快遞。如您有指定的快遞公司，請提前和業務員溝通。廣東省外的客戶統一發安全便捷快速的順豐快遞.
深 圳 市 泰 河 電 子 有 限 公 司
代理:EPSON,KDS,CITIZEN,SEIKO
電話:0755-27872782
手機:13824306246
郵箱:taiheth@163.com
Q Q:794113422
地址:深圳市寶安區40區33號工業城6樓
網址：http://www.zpkwn.cn
溫馨提示:泰河電子已正式開通微信公眾號,大家可以關注訂閱我司的微信公眾號,每天都會更新新的資料,及進口晶振原包裝圖.與官網同步,將可以第一時間與大家溝通!歡迎掃碼關注!
微信:taihekj QQ:794113422
