隨著汽車時代的到來，加快了高科技的發展，同時也使得晶體行業之中的產品線發生了極大的變化，整個行業開始大量生產優質的晶振產品，而石英晶振是汽車技術中最核心的電子零部件，其作用是提供高端基準時鐘信號以及接收傳輸信號。

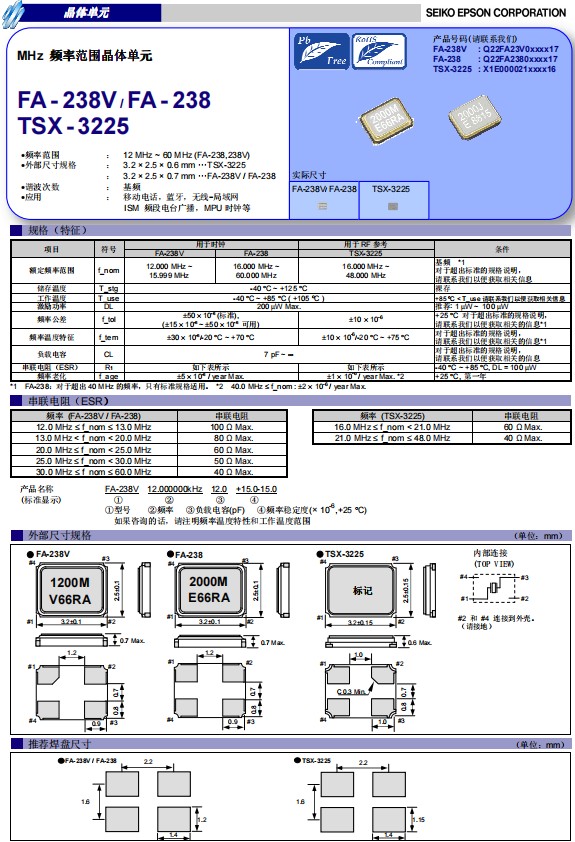

日本進口愛普生晶振FA-238和FA-238V是一款小體積晶振尺寸3.2x2.5mm四腳貼片晶振，無源晶振，石英晶體諧振器，工作溫度范圍在-40℃至+85℃（+105℃），該產品具有小體積輕薄型，耐熱、耐振、耐沖擊等優良的耐環境特性，被廣泛用于移動通訊，智能手機，平板電腦，汽車電子，移動電話，無線藍牙，ISM頻段電臺廣播，MPU時鐘等.

FA-238V無源晶振Q22FA23V0002200適用于車載音響應用,Q22FA23V0006800,3225mm晶振

產品編碼	石英晶振	型號	頻率	負載電容	精度	頻率公差	工作溫度
Q22FA23V0001200	3.2x2.5x0.7mm	FA-238V	13.560000MHz	12pF	+/-50ppm	+/-30ppm	-40to+80°C
Q22FA23V0001800	3.2x2.5x0.7mm	FA-238V	12.288000MHz	12pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0002200	3.2x2.5x0.7mm	FA-238V	12.000000MHz	10pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA23V0002600	3.2x2.5x0.7mm	FA-238V	13.000000MHz	10pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0002700	3.2x2.5x0.7mm	FA-238V	14.745600MHz	20pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0002800	3.2x2.5x0.7mm	FA-238V	12.000000MHz	15pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0002900	3.2x2.5x0.7mm	FA-238V	13.000000MHz	20pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0003000	3.2x2.5x0.7mm	FA-238V	13.000000MHz	20pF	+/-30ppm	+/-50ppm	-20to+60°C
Q22FA23V0003300	3.2x2.5x0.7mm	FA-238V	12.288000MHz	12pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA23V0003700	3.2x2.5x0.7mm	FA-238V	14.318180MHz	20pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0004400	3.2x2.5x0.7mm	FA-238V	12.000000MHz	20pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0004800	3.2x2.5x0.7mm	FA-238V	13.000000MHz	7pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0005200	3.2x2.5x0.7mm	FA-238V	13.560000MHz	10pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0006800	3.2x2.5x0.7mm	FA-238V	14.318000MHz	12pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0006900	3.2x2.5x0.7mm	FA-238V	12.000000MHz	10pF	+/-15ppm	+/-15ppm	-20to+70°C
Q22FA23V0008200	3.2x2.5x0.7mm	FA-238V	14.318180MHz	16pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0008500	3.2x2.5x0.7mm	FA-238V	12.288000MHz	8pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0008600	3.2x2.5x0.7mm	FA-238V	14.745600MHz	12pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0009500	3.2x2.5x0.7mm	FA-238V	12.000000MHz	16pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0010300	3.2x2.5x0.7mm	FA-238V	14.318180MHz	12.5pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA23V0010600	3.2x2.5x0.7mm	FA-238V	12.000000MHz	11pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA23V0010700	3.2x2.5x0.7mm	FA-238V	12.000000MHz	10pF	+/-50ppm	+/-50ppm	-40to+85°C
Q22FA23V0011400	3.2x2.5x0.7mm	FA-238V	14.318180MHz	18pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0011900	3.2x2.5x0.7mm	FA-238V	12.500000MHz	16pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0012300	3.2x2.5x0.7mm	FA-238V	13.560000MHz	12pF	+/-20ppm	+/-30ppm	-40to+85°C

Q22FA23V0013100	3.2x2.5x0.7mm	FA-238V	12.000000MHz	18pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0013600	3.2x2.5x0.7mm	FA-238V	12.000000MHz	8pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0014400	3.2x2.5x0.7mm	FA-238V	12.000000MHz	10pF	+/-15ppm	+/-30ppm	-20to+70°C
Q22FA23V0014900	3.2x2.5x0.7mm	FA-238V	12.000000MHz	20pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA23V0015000	3.2x2.5x0.7mm	FA-238V	12.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+70°C
Q22FA23V0016000	3.2x2.5x0.7mm	FA-238V	12.000000MHz	16pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA23V0016200	3.2x2.5x0.7mm	FA-238V	12.288000MHz	10pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0016400	3.2x2.5x0.7mm	FA-238V	14.318180MHz	9pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0017000	3.2x2.5x0.7mm	FA-238V	12.000000MHz	12pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA23V0017800	3.2x2.5x0.7mm	FA-238V	13.560000MHz	18pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0017900	3.2x2.5x0.7mm	FA-238V	12.500000MHz	10pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0018000	3.2x2.5x0.7mm	FA-238V	14.745600MHz	16pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0019200	3.2x2.5x0.7mm	FA-238V	12.288000MHz	10pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA23V0019300	3.2x2.5x0.7mm	FA-238V	12.000000MHz	12.5pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0019500	3.2x2.5x0.7mm	FA-238V	13.000000MHz	9pF	+/-20ppm	+/-50ppm	-40to+85°C
Q22FA23V0019700	3.2x2.5x0.7mm	FA-238V	12.000000MHz	8pF	+/-15ppm	+/-30ppm	-20to+70°C
Q22FA23V0020500	3.2x2.5x0.7mm	FA-238V	14.745600MHz	8pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0021000	3.2x2.5x0.7mm	FA-238V	14.745600MHz	18pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0023300	3.2x2.5x0.7mm	FA-238V	14.318180MHz	10pF	+/-20ppm	+/-20ppm	-20to+70°C
Q22FA23V0023500	3.2x2.5x0.7mm	FA-238V	12.000000MHz	9pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA23V0023900	3.2x2.5x0.7mm	FA-238V	14.318000MHz	10pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0024100	3.2x2.5x0.7mm	FA-238V	14.318180MHz	10pF	+/-50ppm	+/-30ppm	-40to+85°C
Q22FA23V0024500	3.2x2.5x0.7mm	FA-238V	14.318000MHz	16pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0024700	3.2x2.5x0.7mm	FA-238V	12.000000MHz	10pF	+/-20ppm	+/-30ppm	-20to+70°C
Q22FA23V0025500	3.2x2.5x0.7mm	FA-238V	12.000000MHz	12pF	+/-20ppm	+/-20ppm	-20to+70°C
Q22FA23V0026600	3.2x2.5x0.7mm	FA-238V	13.560000MHz	16pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0026800	3.2x2.5x0.7mm	FA-238V	12.288000MHz	16pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0027900	3.2x2.5x0.7mm	FA-238V	12.000000MHz	18pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA23V0029100	3.2x2.5x0.7mm	FA-238V	14.318180MHz	12pF	+/-15ppm	+/-30ppm	-40to+85°C
Q22FA23V0030700	3.2x2.5x0.7mm	FA-238V	14.318180MHz	8pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA23V0031000	3.2x2.5x0.7mm	FA-238V	14.318000MHz	20pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA23V0031400	3.2x2.5x0.7mm	FA-238V	14.318180MHz	10pF	+/-50ppm	+/-50ppm	-40to+85°C
Q22FA23V0032600	3.2x2.5x0.7mm	FA-238V	14.318180MHz	12pF	+/-10ppm	+/-23ppm	-40to+85°C

FA-238V無源晶振Q22FA23V0002200適用于車載音響應用,Q22FA23V0006800,3225mm晶振
汽車系統中所用的晶振包括音響、藍牙、雷達、時鐘、顯示屏等等不下5處，車載音響中用到的12M或者是16M、26M 貼片晶振，時鐘上到的是32.768khz晶振，倒車?yán)走_(dá)中也有用到晶振，像3225封裝晶振16M、26M、32M都是雷達中比較常用的。
